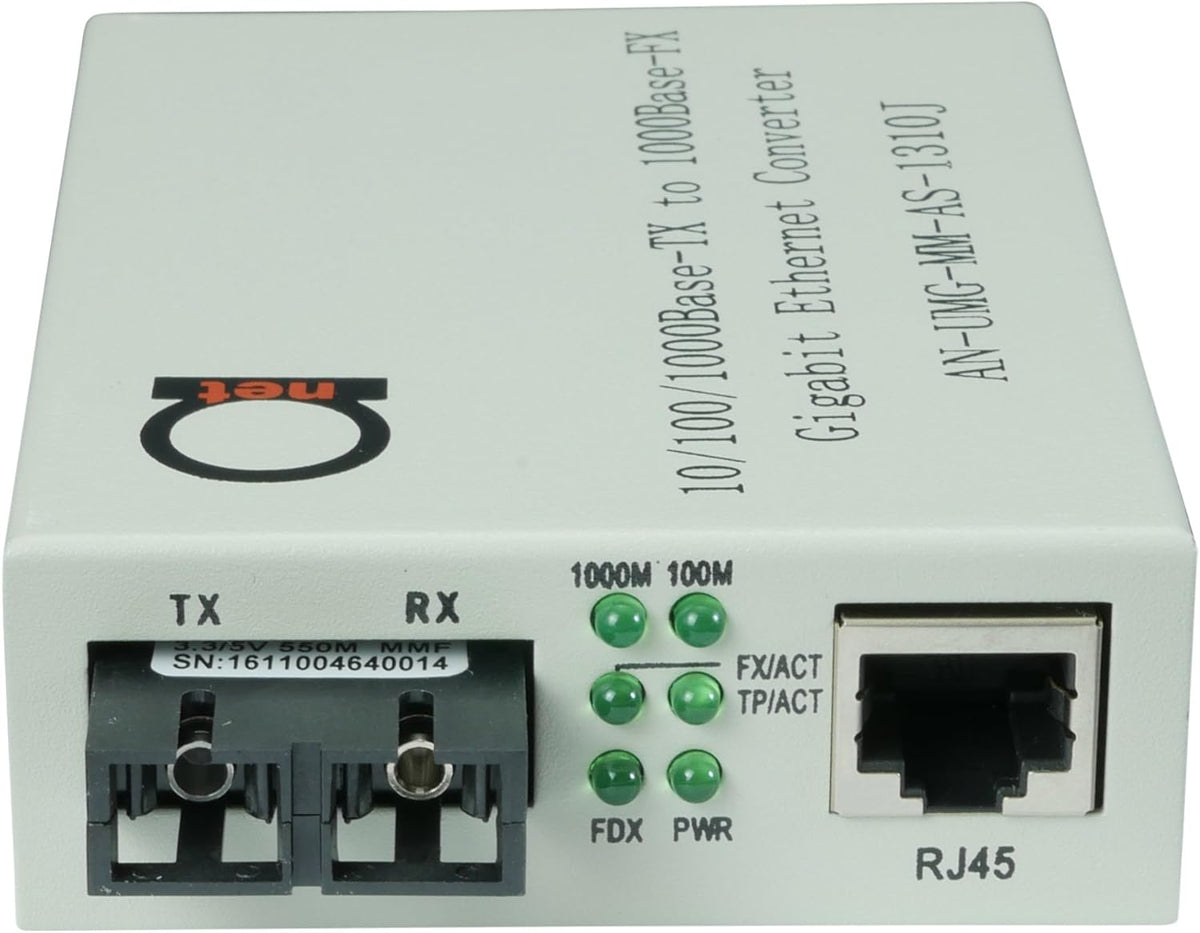

Fiber Media Converter with SC to RJ-45 D944868
Sale price
$11.90
Regular price $58.34
Skip to product information
AUTOMATICALLY adapts to 10 Mbit/s, 100 Mbit/s (Fast Ethernet) or 1000 Mbit/s (Gigabit) Speed And Extends in over Multi Mode Fiber to up to 2 km (Transmission Wavelength - 1310 nm)

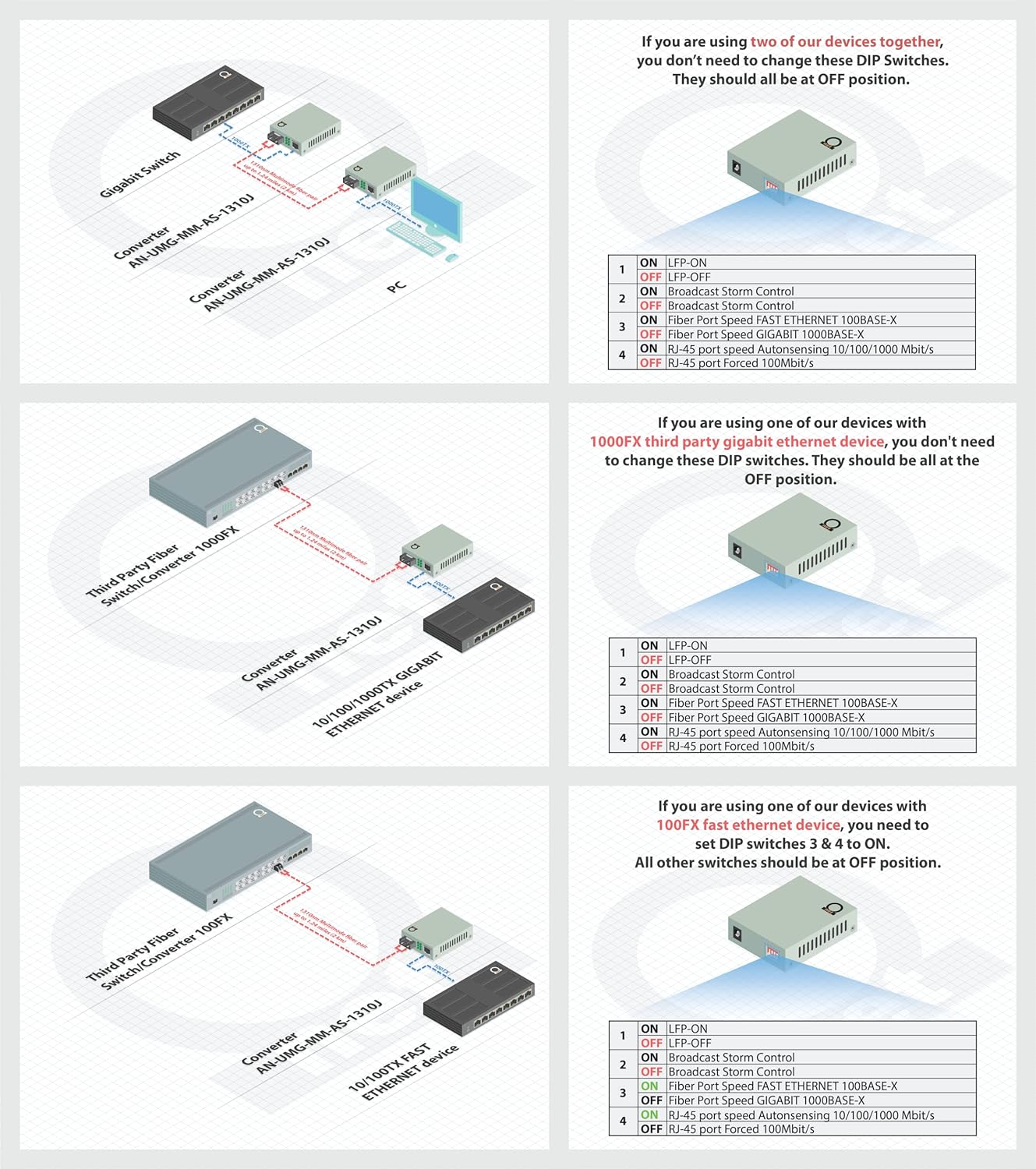

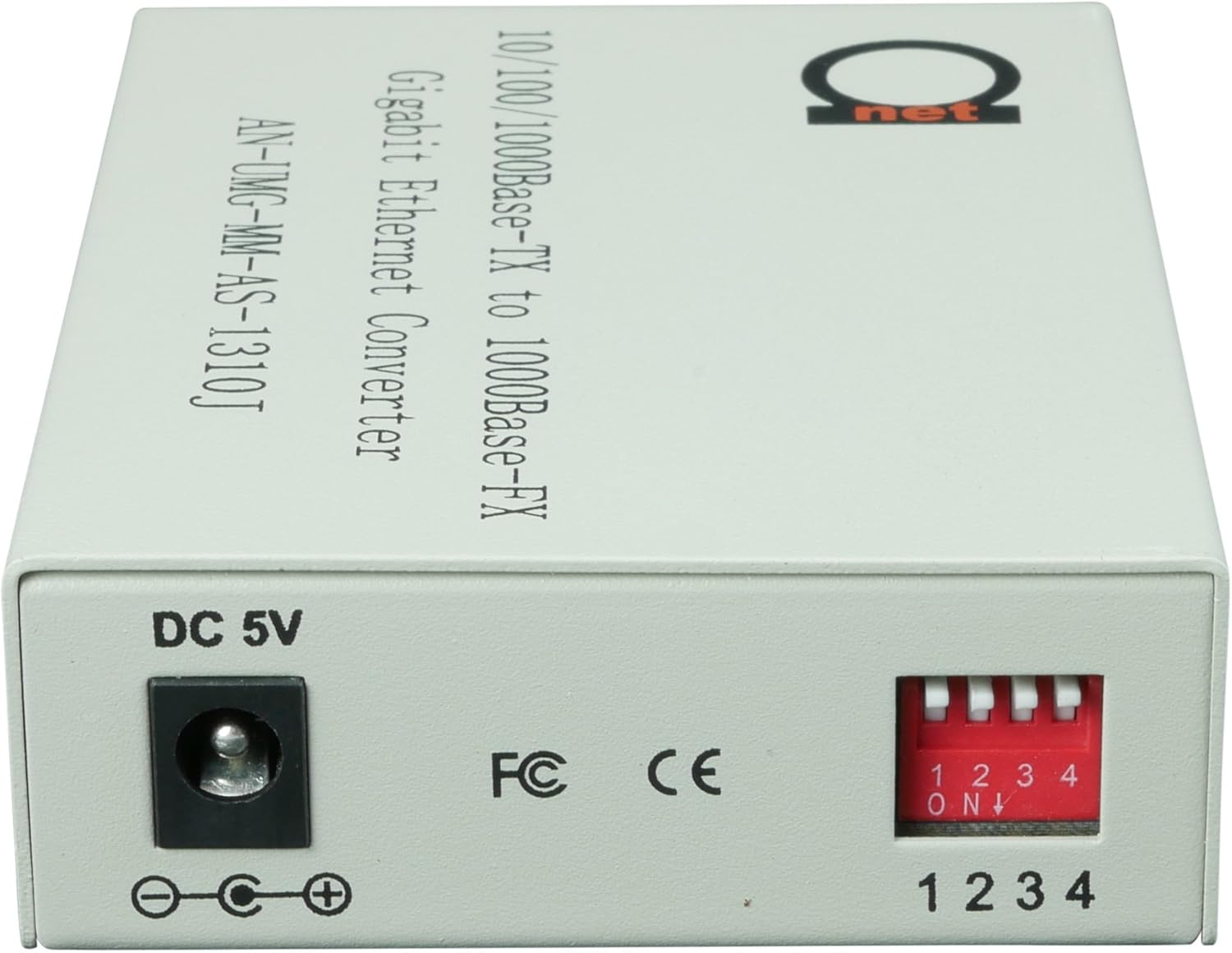

Supports Dual Speed Fiber Mode (configurable by dip switch) – Select 1000Base-FX or 100Base-FX – interconnecting with existing fiber nodes is easy with this media converter. Wavelength – 1310nm, Use it with Multimode Fiber Only.
SUPPORTS Jumbo Frame & LLF feature - for increased end-to-end TCP performance

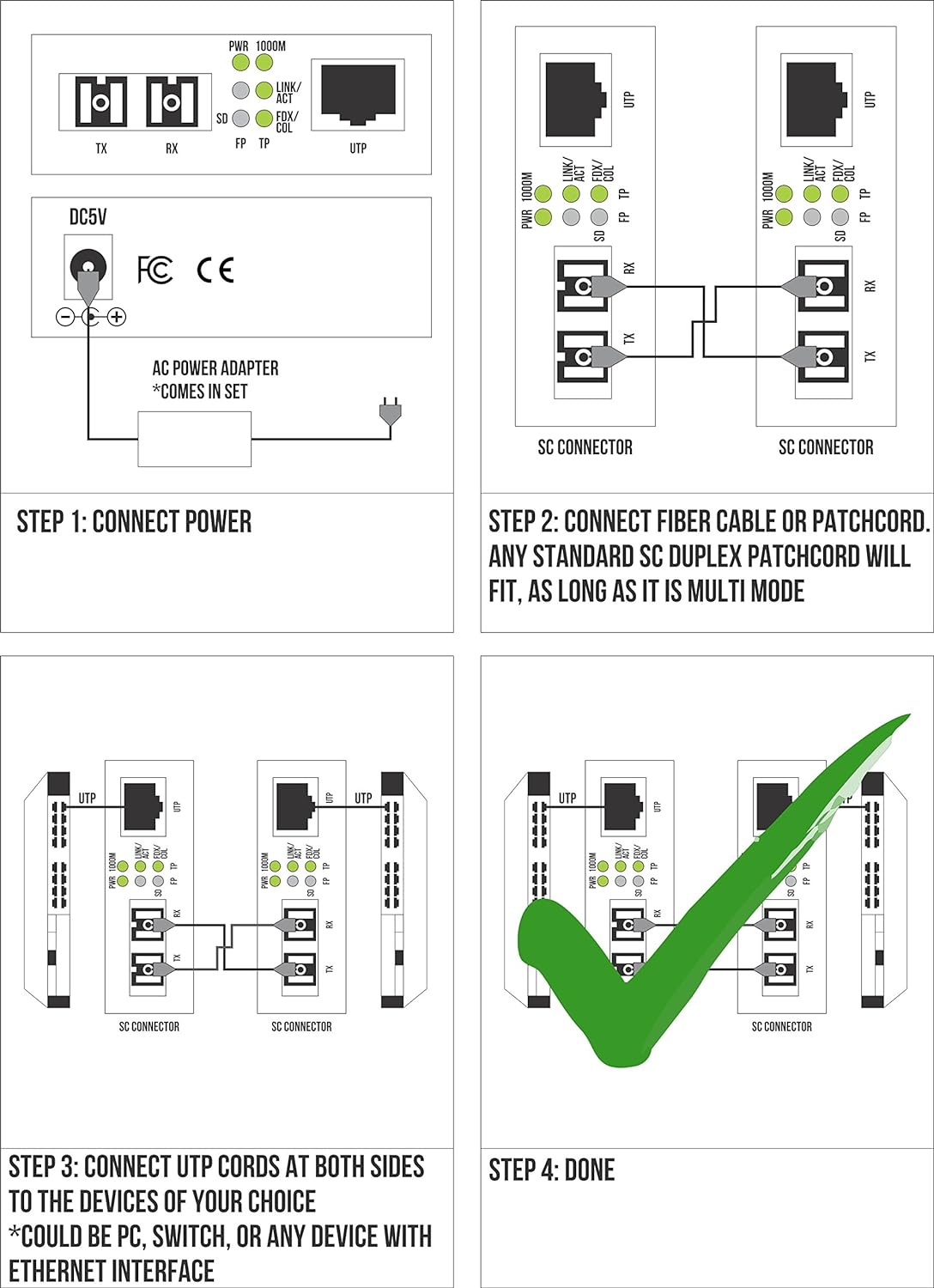

PLUG & PLAY - Simply plug in optical port and UTP port, and it will work immediatelly

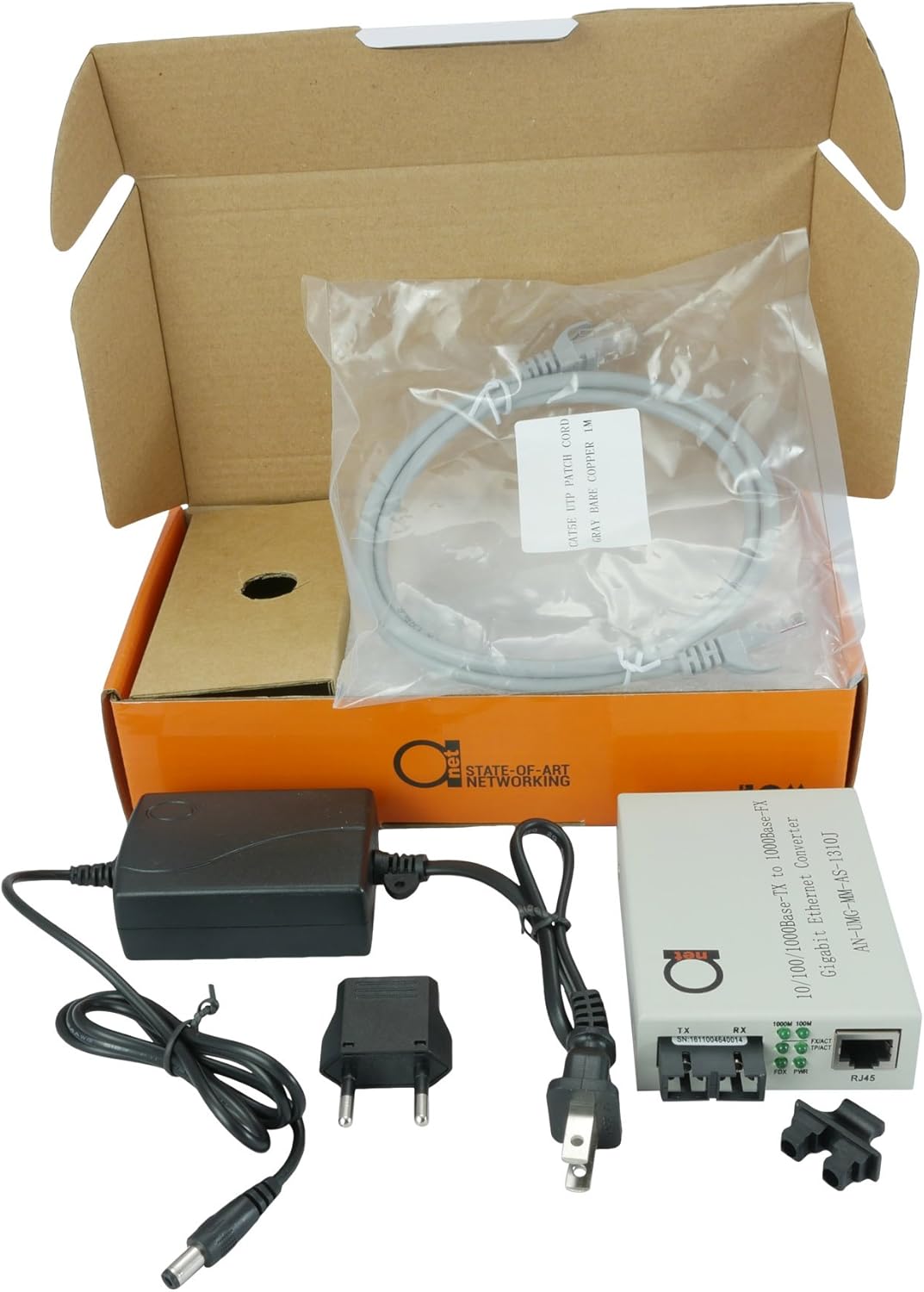

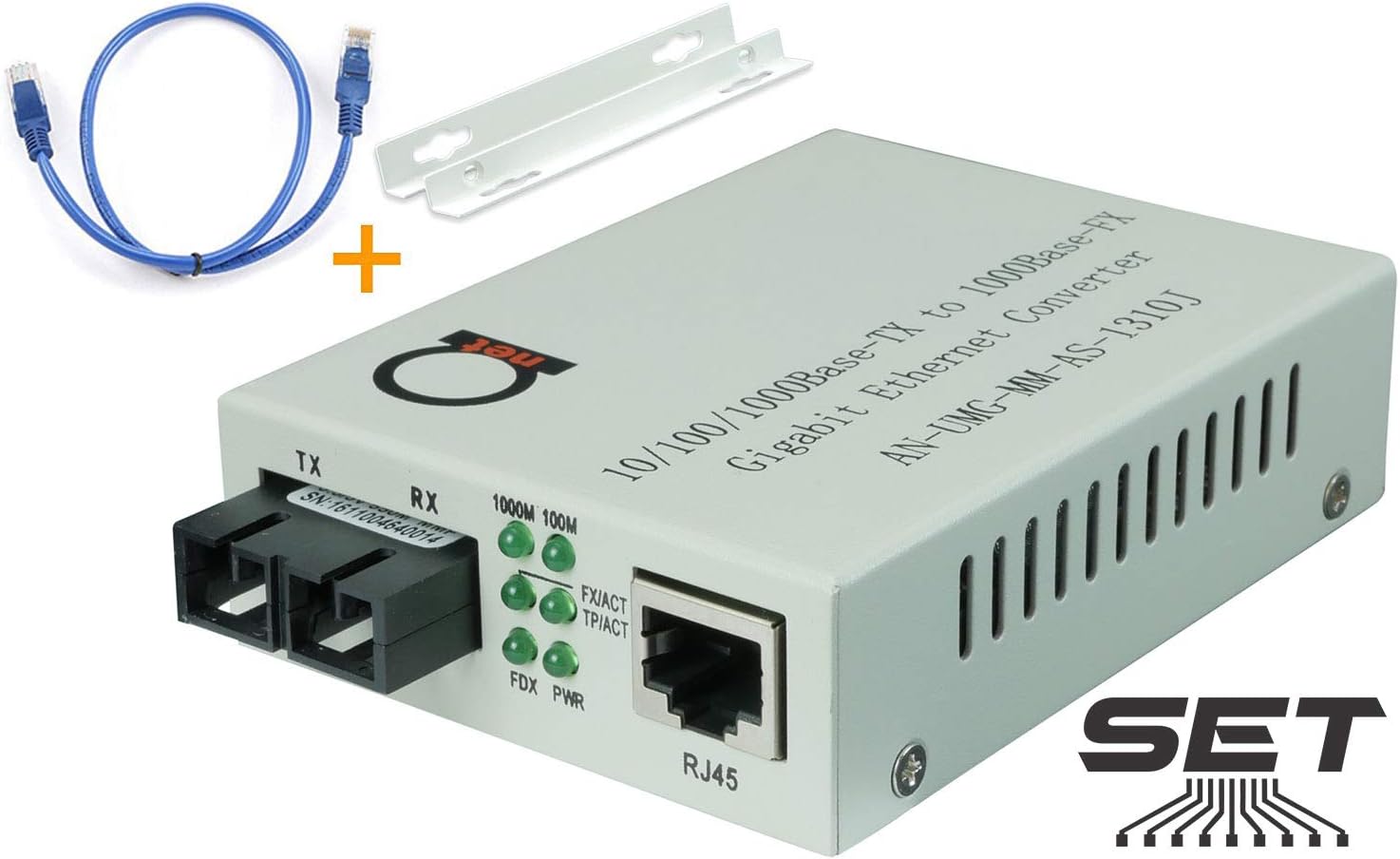

FREE UTP Cat5e Patch Cable (1m - 39in) Comes In The Set With Every Unit! - Colors May Vary Depending on Stock;
Electronics Computers & Accessories Networking Products
Fiber Media Converter with SC to RJ-45 D944868
Sale price
$11.90
Regular price $58.34
Shipping calculated at checkout.
AUTOMATICALLY adapts to 10 Mbit/s, 100 Mbit/s (Fast Ethernet) or 1000 Mbit/s (Gigabit) Speed And Extends in over Multi Mode Fiber to up to 2 km (Transmission Wavelength - 1310 nm)
Supports Dual Speed Fiber Mode (configurable by dip switch) – Select 1000Base-FX or 100Base-FX – interconnecting with existing fiber nodes is easy with this media converter. Wavelength – 1310nm, Use it with Multimode Fiber Only.
SUPPORTS Jumbo Frame & LLF feature - for increased end-to-end TCP performance
PLUG & PLAY - Simply plug in optical port and UTP port, and it will work immediatelly
FREE UTP Cat5e Patch Cable (1m - 39in) Comes In The Set With Every Unit! - Colors May Vary Depending on Stock;
| SC Multimode Gigabit 2 km (1.24 mi) Built-In Fiber Module Media Converter | LC Multimode Gigabit 550m (0.34 mi) LC Fiber Module Media Converter | ST Multimode Gigabit 550m (0.34 mi) Built-In Fiber Module Media Converter | SC Multimode Gigabit 550m (0.34 mi) Built-In Fiber Module Media Converter | PoE Multimode LC 850nm 550m (0.34mi) Fiber Media Converter | DIN Rail Industrial Multimode ST 850nm Fiber Media Converter 550m (0.34mi) | |
|---|---|---|---|---|---|---|
| Speed | Gigabit (default) / Fast Ethernet (User Configurable) | Gigabit (default) / Fast Ethernet (User Configurable) | Gigabit (default) / Fast Ethernet (User Configurable) | Gigabit (default) / Fast Ethernet (User Configurable) | Gigabit | Gigabit (default) / Fast Ethernet (User Configurable) |
| UTP (RJ-45) Port Autosensing to 10 / 100 / 1000 Mbit/s | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Fiber Type | Multi Mode | Multi Mode | Multi Mode | Multi Mode | Multi Mode | Multi Mode |
| Fiber Connector | SC | LC | ST | SC | LC | ST |
| Wavelength | 1300/1310nm | 850nm | 850nm | 850nm | 850nm | 850nm |
| Power Supply | AC adapter in set | AC adapter in set | AC adapter in set | AC adapter in set | AC adapter in set | AC adapter in set (it also accepts direct DC input via phoenix connector) |
| Maximum Reach | 1.24 miles (2 km) | 0.34 miles (550 m) | 0.34 miles (550 m) | 0.34 miles (550 m) | 0.34 miles (550 m) | 0.34 miles (550 m) |
| Size | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 60* 50* 35 mm (2.36* 1.96* 1.37in) (L*W*H) |
| DIN rail support | ✓ | |||||
| PoE/PoE+ PSE Output | ✓ |
