750W 80 Plus Gold Semi Modular Power Supply W37557

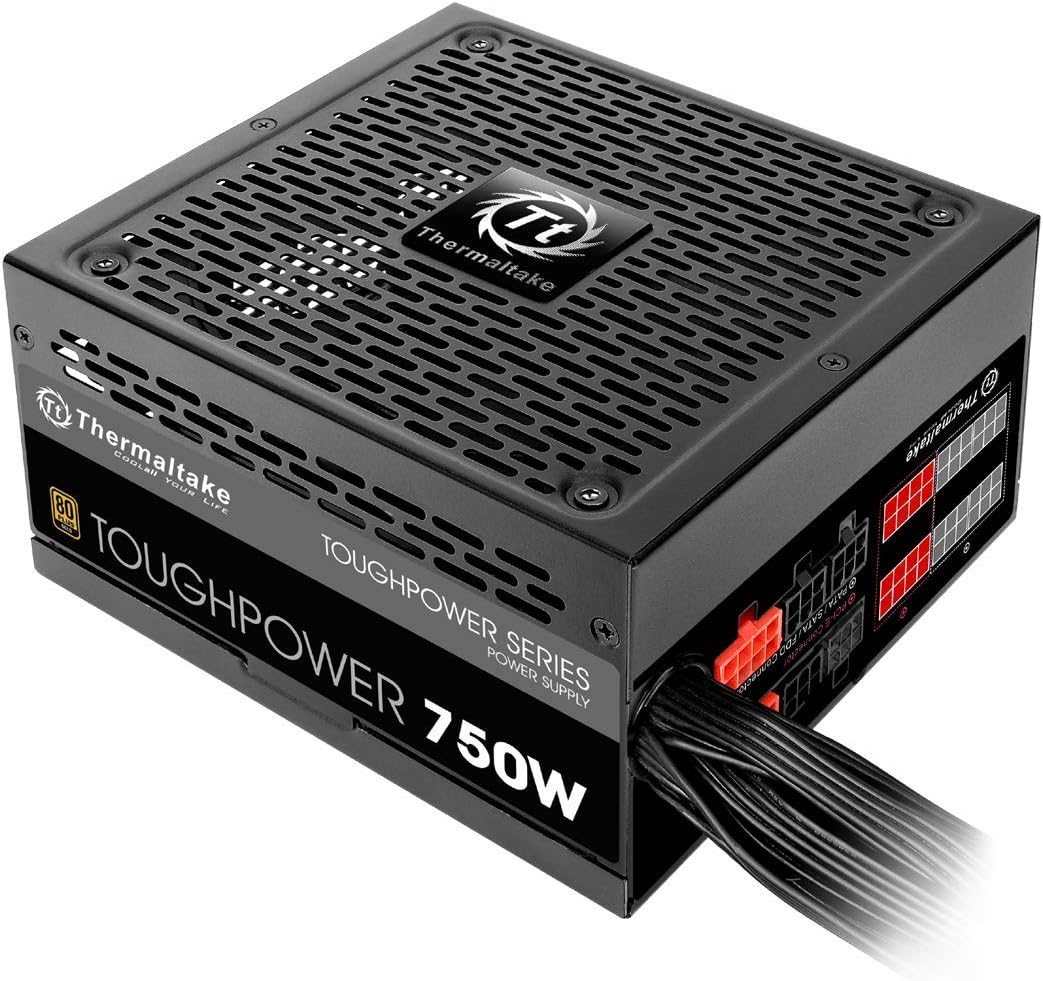

The Thermaltake Toughpower series is a premium 80 PLUS Gold certified power supply that uses the highest quality components for stable performance, excellent features with unbeatable efficiency vital to the current high-end system in market even in demanding conditions. With the 80Plus Gold certification for its high power efficiency, and a single strong 12V rail flexibly routes the maximum available power to your CPU and graphics card, offering maximized power usage and easy setup. Toughpower 750W Gold (Modular) comes with modular design to reduce cable clutter; and ultra-quiet fan delivers silent cooling, thus the entire computer and power supply can operate at its peak moment. P/N: PS-TPD-0750MPCG Model: TP-750AH3CCG-B Type: Intel ATX 12V V2.3 & EPS 12V standards Max. Output Capacity: 750W Peak Output Capacity: 900W Color: Black Dimension (H x W x D): 86mm x 150mm x 160mm PFC（Power Factor Correction): Active PFC Power Good Signal: 00-500 msec Hold Up Time: 12msec (minimum) @ 80% of full load at 115V / 230V input. Input current: 10A Input Frequency Range: 47 Hz - 63 Hz Input Voltage: 100 Vac- 240 Vac Operating Temperature: 0℃ to +40℃ Operating Humidity: 20% to 90%,non-condensing Storage Temperature: -40 ℃ to +70 ℃ Storage Humidity: 5% to 95%, non-condensing Cooling System: 140mm double ball-bearing fan,1500±10%R.P.M. Efficiency: 87-92% efficiency @ 20-100% load MTBF: 120,000 hrs minimum Safety Approval: UL/ TUV/ CE/ FCC/ BSMI/ EAC certification PCI-E Connector: PCI-E 6+2pin x 4
