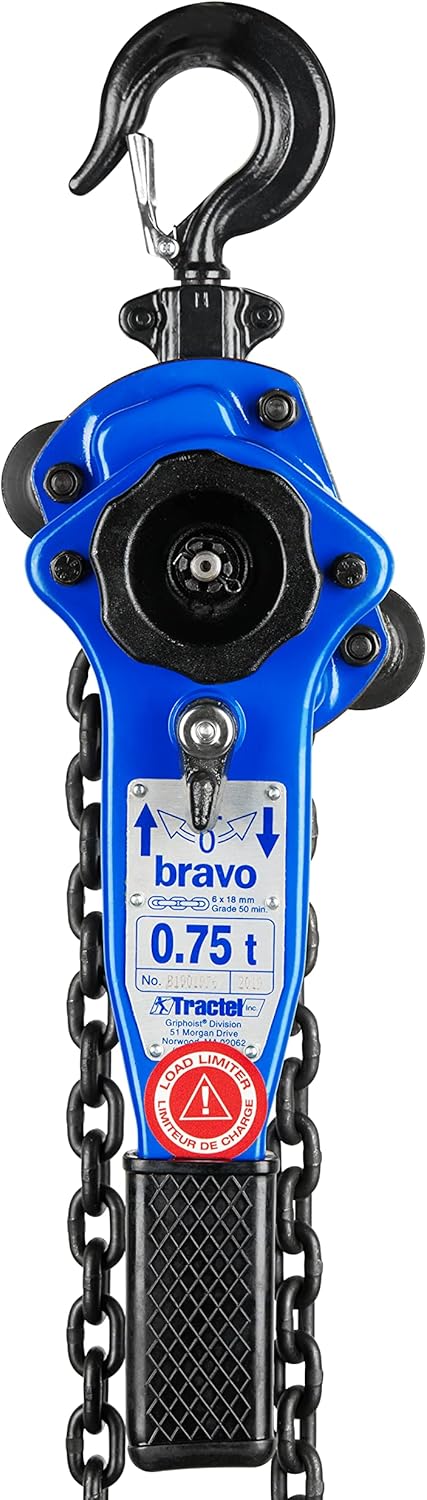

3/4 Ton Capacity Lever Chain Hoist with 10 ft Lift G328595
Sale price
$25.95
Regular price $97.49
Skip to product information
- The Tractel bravo lever hoist series are ideal for industrial and building/civil engineering applications. These hoists are designed for pulling, lifting, positioning, and adjusting loads in workshops and/or building sites
- The bravo series comes in multiple configurations. Available in many weight capacities. Working load limits range from 1/4 ton (500lbs.) to 6 tons (12000 lbs.). Also available in 5 foot to 20 foot wire lengths for the perfect lifting or pulling applications
- The hoist and its components are made of high tensile alloy steel. 360° swivel hook with overload opening indicators. A robust construction that has anti-corrosion treated lifting and handling lines. Operates in temperatures between -40 and 140°F
- The bravo series are professional grade lever hoists that meet or exceed ANSI/ASME B30.21C and OSHA standards for manually lever-operated hoists. The load chain is manufactured in accordance with ISO T
- Suitable for a wide variety of lifting, pulling, and tensioning applications: for lifting and lowering loads in manufacturing and assembly operations, removing engines, rigging and moving loads, applying tension to conveyor and much more
3/4 Ton Capacity Lever Chain Hoist with 10 ft Lift G328595
Sale price
$25.95
Regular price $97.49
Shipping calculated at checkout.
- The Tractel bravo lever hoist series are ideal for industrial and building/civil engineering applications. These hoists are designed for pulling, lifting, positioning, and adjusting loads in workshops and/or building sites
- The bravo series comes in multiple configurations. Available in many weight capacities. Working load limits range from 1/4 ton (500lbs.) to 6 tons (12000 lbs.). Also available in 5 foot to 20 foot wire lengths for the perfect lifting or pulling applications
- The hoist and its components are made of high tensile alloy steel. 360° swivel hook with overload opening indicators. A robust construction that has anti-corrosion treated lifting and handling lines. Operates in temperatures between -40 and 140°F
- The bravo series are professional grade lever hoists that meet or exceed ANSI/ASME B30.21C and OSHA standards for manually lever-operated hoists. The load chain is manufactured in accordance with ISO T
- Suitable for a wide variety of lifting, pulling, and tensioning applications: for lifting and lowering loads in manufacturing and assembly operations, removing engines, rigging and moving loads, applying tension to conveyor and much more

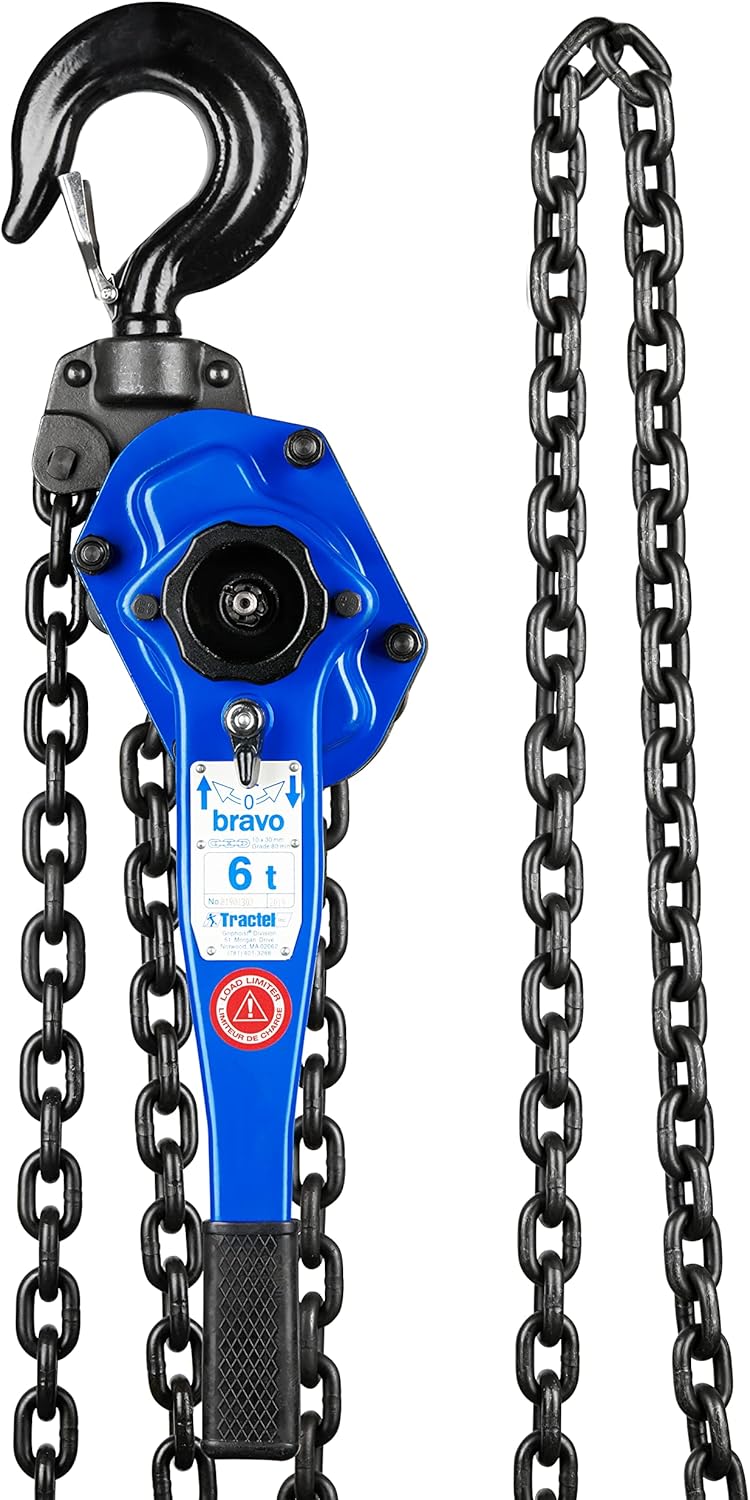

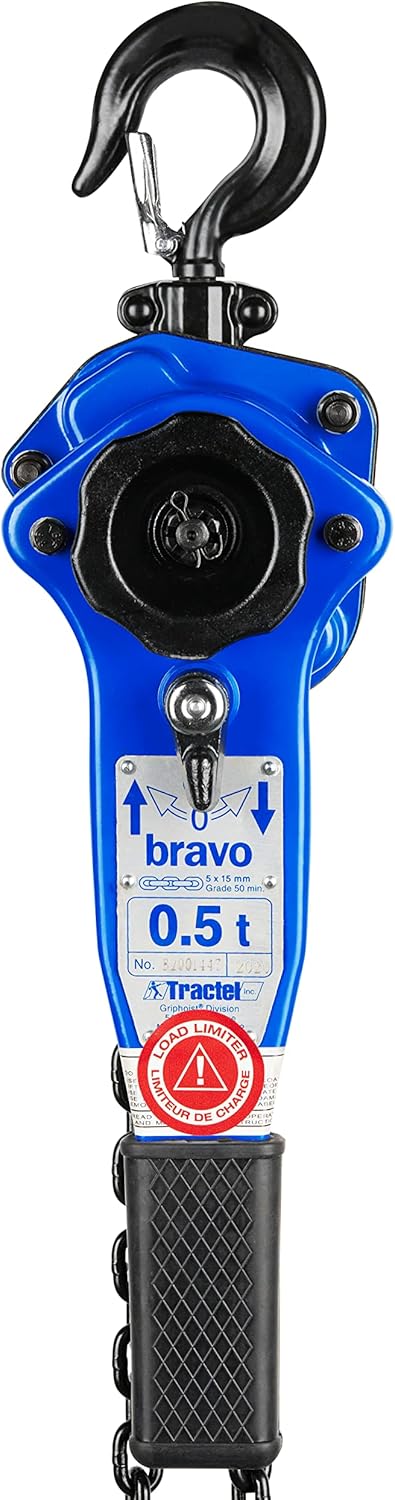

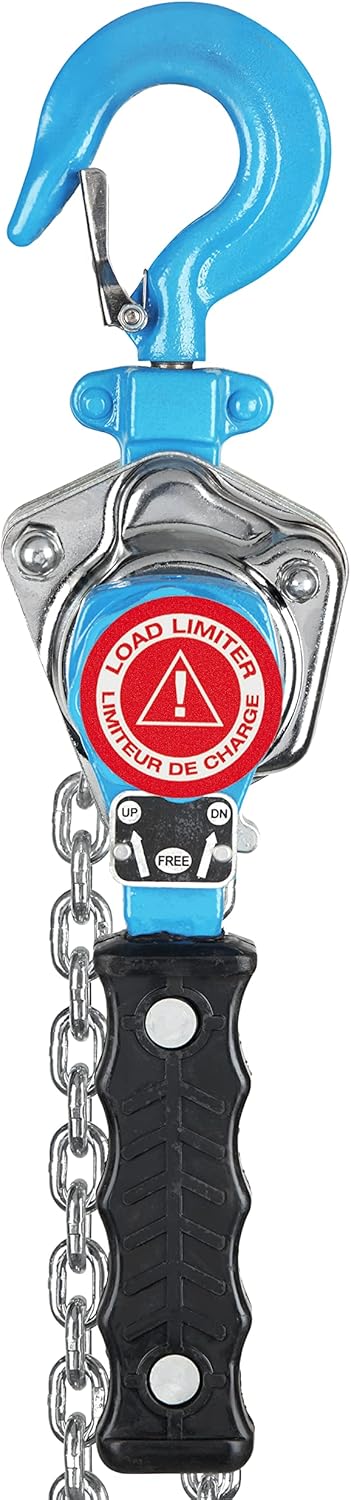

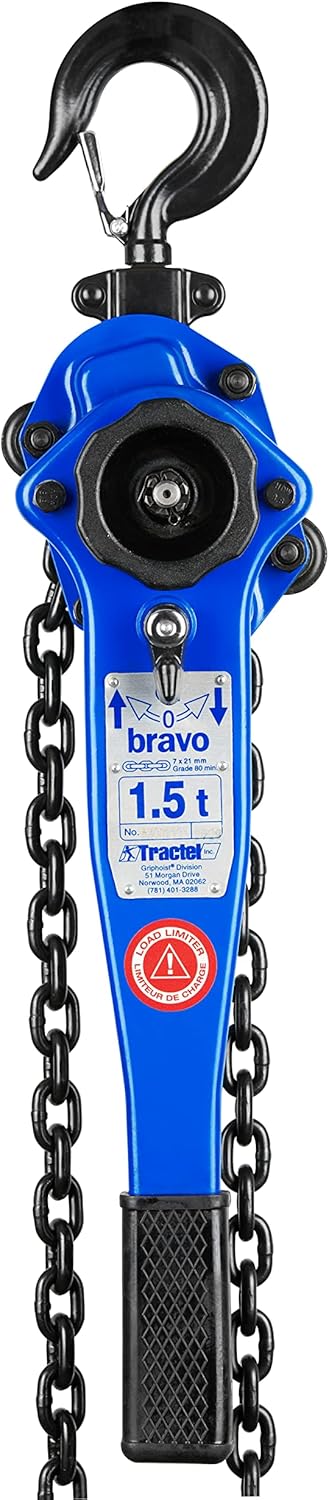

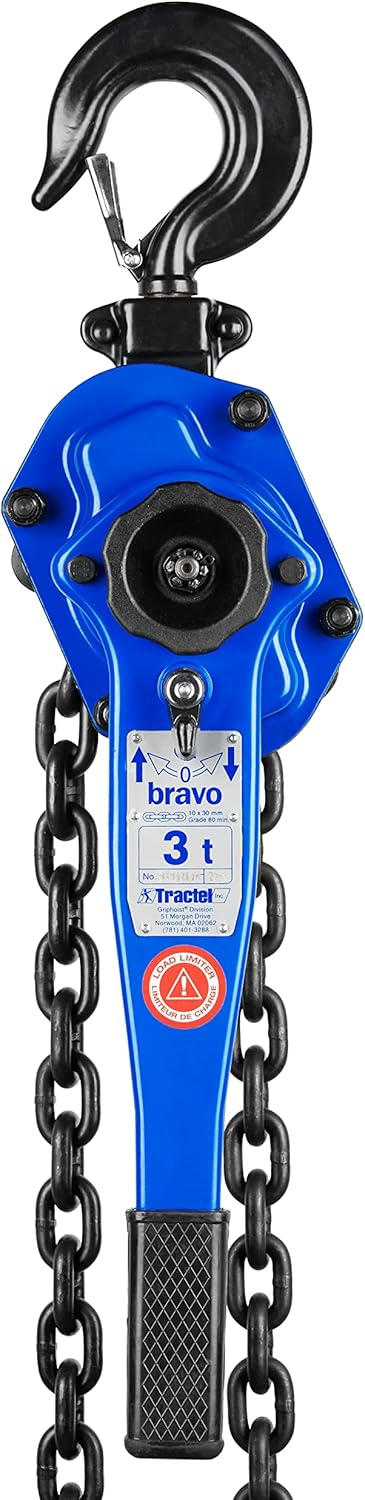

| Lever Hoist 0.25T | Lever Hoist 0.5T | Lever Hoist 0.75T | Lever Hoist 1.5T | Lever Hoist 3T | Lever Hoist 6T | |
|---|---|---|---|---|---|---|
| Load Capacity | 500 lbs. (250 kg) | 1,000 lbs. (500 kg) | 1,500 lbs. (750 kg) | 3,000 lbs. (1,500 kg) | 6,000 lbs. (3,000 kg) | 12,000 lbs. (6,000 kg) |
| Lengths available | 5 Feet | 5, 10, 15, 20, 30, 40 Feet | 5, 10, 15, 20, 30 Feet | 5, 10, 15, 20, 30, 40 Feet | 5, 10, 15, 20, 30 Feet | 5, 10, 15, 20, 30, 40 Feet |
| Number of falls | 1 | 1 | 1 | 1 | 1 | 2 |
| Effort on lever at capacity | 57 lbs. (26 kg) | 79 lbs. (36 kg) | 44 lbs. (20 kg) | 46 lbs. (21 kg) | 73 lbs. (33 kg) | 75 lbs. (34 kg) |
| Load chain size | 4 x 12 mm | 5 x 15 mm | 6 x 18 mm | 7 x 21 mm | 10 x 30 mm | 10 x 30 mm |
| 360° swivel hook with overload opening indicators | ||||||
| Load chain manufactured in accordance with ISO T |
